Why Resin Miniatures Warp After Printing

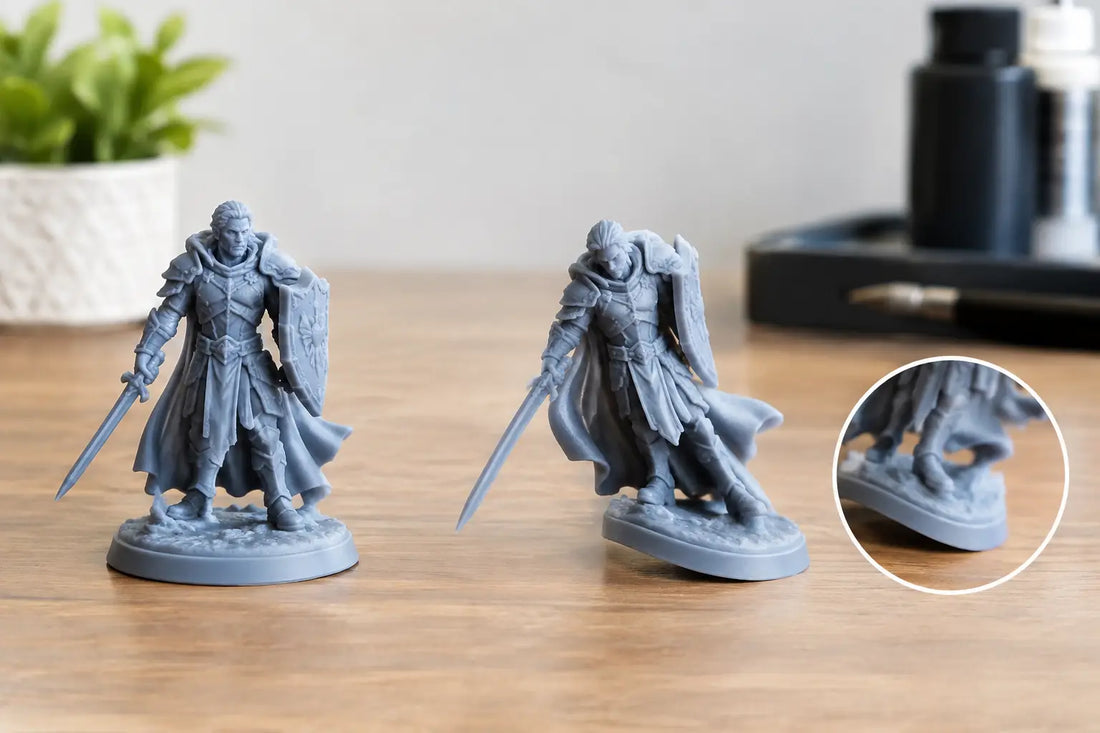

You finish a glorious grimdark brute, cure it, prime it, and spot the problem: the axe shaft leans like it has survived three bad tavern brawls. Or a scenic base has developed a slow, cursed curve. Understanding why resin miniatures warp saves models, paint jobs, and a fair amount of tabletop rage.

Warping is not usually proof that a sculpt is bad or that a print has failed outright. Resin miniatures are made from a UV-cured polymer, and that material can keep reacting to uneven heat, uneven curing, internal stress, and poor support during its trip from liquid resin to finished model. Long, thin parts are the first to show it, but large flat surfaces, hollow bodies, and oversized weapons can all join the rebellion.

The good news is that most warped resin is fixable. Better still, most future warps can be prevented with a little discipline in your print setup, curing routine, and storage.

The Real Reasons Resin Miniatures Warp

Uneven curing creates internal tension

When UV resin cures, it hardens through a chemical reaction. If one side of a miniature receives much more UV exposure than the other, that side can shrink and stiffen first. The less-cured side catches up later, pulling against it. The result is stress inside the piece, and stress looks for the weakest route out: a bent spear, a curled cloak edge, or a base that refuses to sit flat.

This is especially common when a miniature is left in direct sunlight. Sunlight is powerful, uneven, and hard to control. One side bakes while the other remains shaded, particularly on a model with deep armor plates, undercuts, and layered detail. A proper cure station that rotates the miniature gives far more consistent results.

Overcuring can also make the problem worse. Resin does need a full cure, but blasting a miniature with UV far beyond what the material requires can make it brittle and increase shrinkage stress. More cure time is not automatically better. Follow the resin manufacturer’s recommended range, then judge the result based on the model’s size, wall thickness, and exposure setup.

Heat softens resin, even after curing

Cured resin is not invincible. It softens when warm, especially in thin sections. A model left in a hot car, near a sunny window, or packed against a heat source during shipping can slowly bend under its own weight. The culprit might be a banner pole, sword, gun barrel, or an outstretched arm loaded with a heavy weapon.

This is why a miniature can arrive straight, then warp weeks later on a display shelf. It may not be a printing defect at all. It may simply have spent a summer afternoon receiving more heat than a 32mm-scale warband was built to endure.

The trade-off is simple: thin parts create great silhouettes and make dark-fantasy characters feel dynamic, but they are less rigid than a thick club, shield, or armored torso. A dramatic spear held high looks excellent on the table. It also deserves more care than a squat goblin with both feet planted on a chunky base.

Weak supports let parts move during printing

For home printers, warping often begins before post-processing. Every layer is pulled from the release film during an MSLA print, and unsupported or lightly supported sections flex under that force. A long blade may print, but it can slowly curve as layers accumulate. A broad cape can pull upward at the edges. A large flat base can form with a subtle bend that becomes obvious only after curing.

Support placement is not just about stopping pieces from falling off the build plate. It is about holding vulnerable geometry in the exact position intended by the sculpt. Long horizontal parts need adequate support along their length. Heavy areas need firm anchors. Flat surfaces should usually be angled rather than printed parallel to the plate, where suction forces and layer stress can become nasty.

Pre-supported files are built to make this easier, but resin, printer calibration, room temperature, and release-film condition still matter. If a particular model keeps warping, inspect the supports before blaming the STL. A support that works beautifully with one tough resin at 75 degrees may need reinforcement with a softer blend in a cold garage.

Hollow models need proper drainage and curing

Large resin miniatures are often hollowed to reduce resin use, print time, and weight. That is usually smart. But hollowing creates a new rule: uncured resin cannot be trapped inside.

If resin remains in a hollow chamber, it can continue curing slowly through the walls or react to heat over time. Internal pressure and uneven curing can distort the model, crack it, or force resin out through a seam. This is one of the uglier ways a prized monster, vehicle, or display-scale orc can go bad months after printing.

Use drain holes in the lowest points for the chosen print orientation, plus enough ventilation for resin and wash liquid to escape. Flush the inside thoroughly, let it dry completely, and cure the interior as well as the exterior when practical. For big prints, a small UV light placed near the drain holes can help. The goal is not merely a hollow miniature. The goal is a clean, dry, fully cured hollow miniature.

Thin parts and large flat parts are natural weak points

Not all warping comes from a process mistake. Geometry matters. A narrow sword, whip, staff, wingtip, or banner is simply more flexible than a thick armored leg. Likewise, a broad thin base has a lot of surface area that can pull unevenly as it cures.

This is where expectations matter. A finely detailed 16K resin miniature can capture sharp teeth, battered plate, and the malicious little grin of a Pocket Goblin. That same fidelity allows for slimmer details than a chunky board-game piece. Treat those details as precision components, not indestructible terrain.

How to Straighten a Warped Resin Miniature

For most fully cured miniatures, warm water is the cleanest fix. Fill a cup or bowl with hot tap water, not boiling water. You want enough heat to soften the resin slightly, not cook the miniature, damage glue joints, or risk burns.

Submerge only the bent area for roughly 15 to 30 seconds. Remove it carefully, then gently bend the part back into position. Hold it there while it cools, or run it under cold water to help it set. Work slowly. Resin responds better to steady pressure than a sudden heroic shove.

A hair dryer can work for a part that cannot be submerged, but it is easier to overheat a small area. Keep the dryer moving, use a low setting, and check the flexibility often. Do not use an open flame, heat gun on high, or boiling water. Those methods can turn a minor bend into a melted, pitted catastrophe.

If the part keeps returning to its old shape, it may not be fully cured or it may be carrying too much stress. Straighten it, then give it a short, even curing session in a rotating UV station. If it is a long, load-bearing piece such as a spear or banner pole, consider replacing it with brass rod or piano wire. That is not surrender. It is field armor for a fragile detail.

For painted miniatures, use extra restraint. Warm water can soften certain paints, decals, and basing materials, while heat can weaken super glue. If the bend is minor, a controlled hair dryer is often safer. If the part is badly distorted and painted, removing and replacing it may produce a cleaner result than forcing a repair through finished layers.

Preventing Warp Before It Starts

A stable miniature begins with a stable workflow. Keep your resin and printer in the temperature range recommended for that resin. Cold resin can print poorly, while excessive heat can make supports and thin features less predictable. Wash prints thoroughly, allow them to dry completely, and cure them evenly instead of rushing straight from wash station to sunlight.

For DIY prints, orient models to reduce large cross-sections and suction pressure. Reinforce supports on long, thin, or heavy features. Hollow larger models with sensible wall thickness and drain holes. When in doubt, spend a few extra minutes supporting the problem areas. It is cheaper than reprinting an entire warband because the boss’s power claw developed a banana curve.

For physical resin miniatures, storage matters as much as production. Keep finished models out of direct sun, away from radiators, and out of hot vehicles. Store heavy or long-armed figures upright where possible, rather than piled in a case with pressure resting on a weapon or banner. A padded transport case protects paint, but it should not squeeze a delicate model into a new pose.

Proxy Realms miniatures are made for painting, gaming, collecting, and bringing ugly little legends to life on the battlefield. Give their thin details the same respect you give a favorite brush tip or a freshly finished display base. A few careful minutes with heat, curing, and storage will keep the warband standing mean, straight, and ready for the next campaign.
