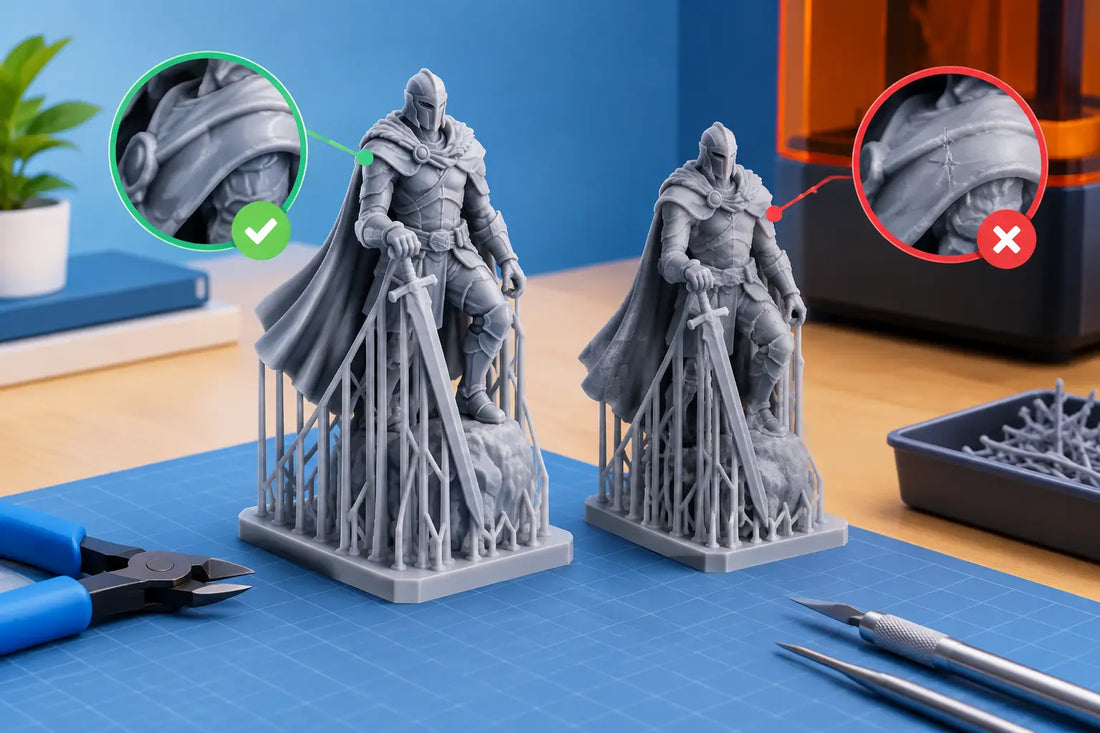

How to Support Miniature STLs Without Scars

A beautiful miniature can turn into a resin-soaked casualty long before curing if its supports are wrong. Learning how to support miniature STLs is less about drowning every surface in heavy posts and more about controlling gravity, peel forces, and the places where tiny details can survive a contact mark. Get it right, and that grimdark hero arrives on the build plate with crisp armor trim, intact weapons, and a face worth painting.

For home printers, supports are the invisible scaffolding behind every successful ork boss, dungeon goblin, and cursed knight. They hold the model through the most violent moment of an MSLA print: when each cured layer separates from the FEP film at the bottom of the vat. Your job is to give that force a safe path through the miniature without ruining the details that sold you on the sculpt.

Start by Choosing the Right STL Version

Before placing a single support, check whether your download includes unsupported, presupported, or hollowed files. These are not interchangeable.

An unsupported STL is the clean, original sculpt. It gives you complete control over orientation, support density, hollowing, and drainage, but it expects you to know your printer and resin. This is usually the better option for experienced hobbyists, larger display pieces, and anyone who wants to customize a base or add parts.

A presupported STL has already been angled and fitted with supports by the sculptor or a support artist. For most tabletop-scale figures, this is the fastest road to a successful print. Good presupports are designed around the miniature's specific silhouette, not generated by a blind auto-support button. Use them as supplied first, especially when printing a detailed 32mm character with thin weapons, layered cloth, or a dramatic pose.

If a presupported file fails repeatedly, do not assume the file is cursed. Check your exposure, lift settings, FEP condition, room temperature, and leveling before redesigning the support layout. A good support job cannot rescue resin that is too cold or badly calibrated.

How to Support Miniature STLs: Orientation First

Orientation decides where the supports go, how much suction the print creates, and which surfaces get the cleanest finish. Supports are the consequence of orientation, not the starting point.

Avoid printing most miniatures straight upright. A vertical pose may look logical, but it often creates large cross-sections all at once and leaves low points unsupported. It can also force support contacts onto the feet, cloak, or front-facing details where you will notice every mark after priming.

Instead, angle the miniature roughly 25 to 45 degrees from the build plate. Rotate it so the least visible areas face downward: the back of a cloak, underside of a weapon, bottom of a base, rear of armor plates, or hidden side of a shield. The exact angle depends on the pose. A broad, flat cape may need more tilt to reduce its per-layer cross-section, while a narrow spear-wielding model may print well at a gentler angle.

Think about how each feature enters the print. The first layers of a boot, hand, gun barrel, or shoulder pad need support before the rest of that feature exists. If a sword tip begins in midair, it is an island. If a hanging purity seal or dangling trophy appears before it connects to a supported body section, it is also an island. Islands do not negotiate. They either get a support or they become a floating scrap in the vat.

Use your slicer's layer preview to inspect the model from bottom to top. This is where most support problems reveal themselves. Look for isolated pixels and tiny cross-sections that appear before a connection to the main supported mass.

Build a Support Structure, Not a Forest

A miniature needs a hierarchy of support points. Heavy supports anchor the first major load-bearing sections. Medium supports carry the body, armor masses, and larger weapons. Light supports catch fragile details and small islands. If every support is heavy, removal becomes a brutal extraction job that scars the model. If every support is light, the print can flex, detach, or fail during lifting.

Place your strongest supports on the earliest and heaviest areas of the model. Depending on orientation, that may be the underside of the base, a rear boot, the bottom edge of a cloak, or a large armor plate. These anchors need to resist the initial peel force and keep the miniature from bending as the print grows.

From there, distribute medium supports across the major mass. Do not cluster them all in one spot. A chunky orc torso might look solid, but one unsupported side can still warp if it carries too much pull. Give broad surfaces multiple points of support, especially around their lowest edges.

Save light supports for the vulnerable stuff: fingers, horn tips, sword blades, cables, spikes, thin banners, and the ends of rifles. Put contacts on recesses or undersides whenever possible. A tiny mark under a gauntlet reads as battlefield wear. A crater in the middle of a snarling face reads as a mistake.

Support contacts should be firm enough to hold, but no larger than necessary. Contact size is a balancing act. Larger tips reduce failures but leave larger nubs. Smaller tips preserve detail but can let delicate parts break free. There is no universal setting because resin type, exposure, printer resolution, and room temperature all change the outcome.

Respect Hollowing, Drain Holes, and Suction Cups

Large miniatures and display-scale monsters are often worth hollowing to save resin and reduce weight. Small 28mm to 32mm gaming figures are frequently better printed solid. Hollowing a small figure can create awkward internal cavities, add cleaning work, and provide little material savings.

When you hollow a large model, add drainage holes at the lowest points in its printing orientation. Add vent holes near high points if trapped resin or air could form a sealed pocket. Holes must connect to the internal cavity, not merely dimple the outer wall.

A sealed hollow part can create suction forces strong enough to split a print, pull it from supports, or leave uncured resin trapped inside. That last problem is especially ugly. Resin left inside a sealed miniature can leak later, crack the shell, and ruin a piece after you thought the battle was won.

Hide drainage holes where they make sense: under a base, inside a joint, beneath a backpack, or on a surface that will be glued to another component. After washing, make sure the interior is actually clean and fully dry before final curing.

Use Auto-Supports as a Scout, Not a Commander

Auto-support tools are useful, but they are not a substitute for inspecting the model. Let the software create a first pass if you want to save time, then audit it like a suspicious inquisitor.

Check for unsupported islands, oversized contact tips on visible surfaces, weak support density under heavy sections, and support branches that collide with fine details. Also look at the contact points near the base. A model can be perfectly supported above and still fail because its first attachment points are too weak.

For multipart kits, support and print parts separately when possible. A separate arm, weapon, head, or scenic element is easier to orient well than a giant all-in-one file. It also limits the cost of failure. Reprinting a single snapped sword arm hurts far less than reprinting an entire warband centerpiece.

Remove Supports Before They Become Damage

Even a perfect support layout can leave scars if removal is careless. Wash the print first, then remove supports before the final cure. Slightly flexible, not fully cured resin releases supports more cleanly than brittle fully cured resin.

Clip larger supports close to the contact point with flush cutters, then twist or peel lighter branches away gently. Do not yank a support tree like you are pulling a heretic from a trench. Thin ankles, fingers, and weapon shafts can snap with it.

A short warm-water bath can soften many resins enough to make removal easier. Keep the water warm, not boiling, and follow the safety guidance for your specific resin. Wear gloves, keep uncured resin off your skin, and cure all waste before disposal.

After removal, inspect the miniature under a strong light. Small nubs can be scraped with a hobby knife or smoothed with fine sanding sticks. If a support mark sits on a textured cloak or battered armor, a little primer and weathering may hide it completely. Smooth skin, polished helmets, and broad flat surfaces need more careful cleanup.

Run Small Tests Before Committing a Whole Warband

Do not send ten copies of a new STL into the resin trenches based on hope alone. Print one test model first, ideally using the same resin, layer height, temperature, and settings planned for the full batch. Check the feet, weapon tips, fingers, face, and any wide low-angle surfaces.

When a test fails, diagnose the failure rather than simply adding supports everywhere. A missing sword tip suggests an island or weak light support. A warped cloak may indicate insufficient support under a broad low edge. A model ripped from the plate may point to poor bed adhesion, inadequate bottom exposure, or excessive peel force. A cracked hollow body usually demands a closer look at drainage and suction.

Keep notes on successful orientations and support settings for your printer. After a few print runs, you will build a reliable playbook for the kinds of figures you love most, whether that means rank-and-file goblins, brutal ork warbands, or a named brute built to dominate a display shelf.

The best support job is almost invisible after cleanup. Give the ugly work to undersides, recesses, and hidden joints, then let the miniature keep its teeth, textures, and grim expression for the paint bench.
